Vapor Chamber: Working Principle, Benefits and Uses

1. What Is a Vapor Chamber?

A vapor chamber is a flat, sealed thermal component that spreads heat across a surface. It uses a working fluid to transfer thermal energy through phase changes.

Unlike a solid copper plate, a vapor chamber uses evaporation and condensation to move heat. Therefore, it can distribute concentrated heat across a larger area.

A typical vapor chamber contains two metal covers, an internal wick, a working fluid, and a sealed vapor space. The wick helps return liquid to the heated region.

As a result, vapor chambers can reduce localized hot spots and improve temperature uniformity. Their thin structure also suits electronic devices with limited installation space.

Engineers often use a vapor chamber when conventional heat spreaders cannot meet demanding thermal requirements. However, they must consider heat load, chamber dimensions, operating temperature, and condenser conditions.

For manufacturers, consistent production quality remains essential. Precise wick processing, vacuum control, fluid filling, and sealing all influence thermal performance.

2. How Does a Vapor Chamber Work?

A vapor chamber uses four main processes: evaporation, vapor movement, condensation, and liquid return. Together, these processes create a continuous heat-transfer cycle.

Step 1: Heat Absorption

First, a heat source transfers energy into the vapor chamber. The working fluid near the heat source absorbs this energy and evaporates.

Step 2: Vapor Movement

Next, the vapor moves through the internal cavity toward cooler areas. This movement distributes thermal energy across the chamber.

Step 3: Condensation

When the vapor reaches a cooler surface, it condenses into liquid. During condensation, the fluid releases latent heat to the surrounding structure.

The connected cooling system then removes this heat. For example, a heatsink may transfer the energy into the surrounding air.

Step 4: Liquid Return

Finally, the wick draws liquid back toward the heat source through capillary action. The fluid then evaporates again as the cycle continues.

This mechanism helps a vapor chamber spread heat across two dimensions. Consequently, engineers often use it for compact processors and other concentrated heat sources.

However, performance depends on several factors. These include wick permeability, working-fluid charge, internal pressure, contact resistance, and condenser temperature.

3. Main Components of a Vapor Chamber

Each component contributes to the chamber’s heat-transfer performance and reliability.

Component	Main Function
Top and bottom covers	Enclose the working fluid and form the chamber
Wick structure	Returns liquid through capillary action
Working fluid	Absorbs and releases heat through phase changes
Vapor space	Allows vapor to move between hot and cool regions
Sealed joints	Maintain the internal environment
Thermal interfaces	Connect the chamber to heat sources and cooling hardware

Copper commonly serves as the enclosure material because it offers good thermal conductivity. Moreover, copper supports forming, machining, sintering, and welding processes.

Water often serves as the working fluid in copper vapor chambers. However, engineers must match fluid properties with operating temperatures and material compatibility.

The wick also requires careful design. For example, sintered copper powder creates a porous structure that supports liquid return. Meanwhile, mesh and grooves offer alternative wick configurations.

Ultimately, the correct combination depends on heat load, chamber dimensions, installation orientation, and production requirements.

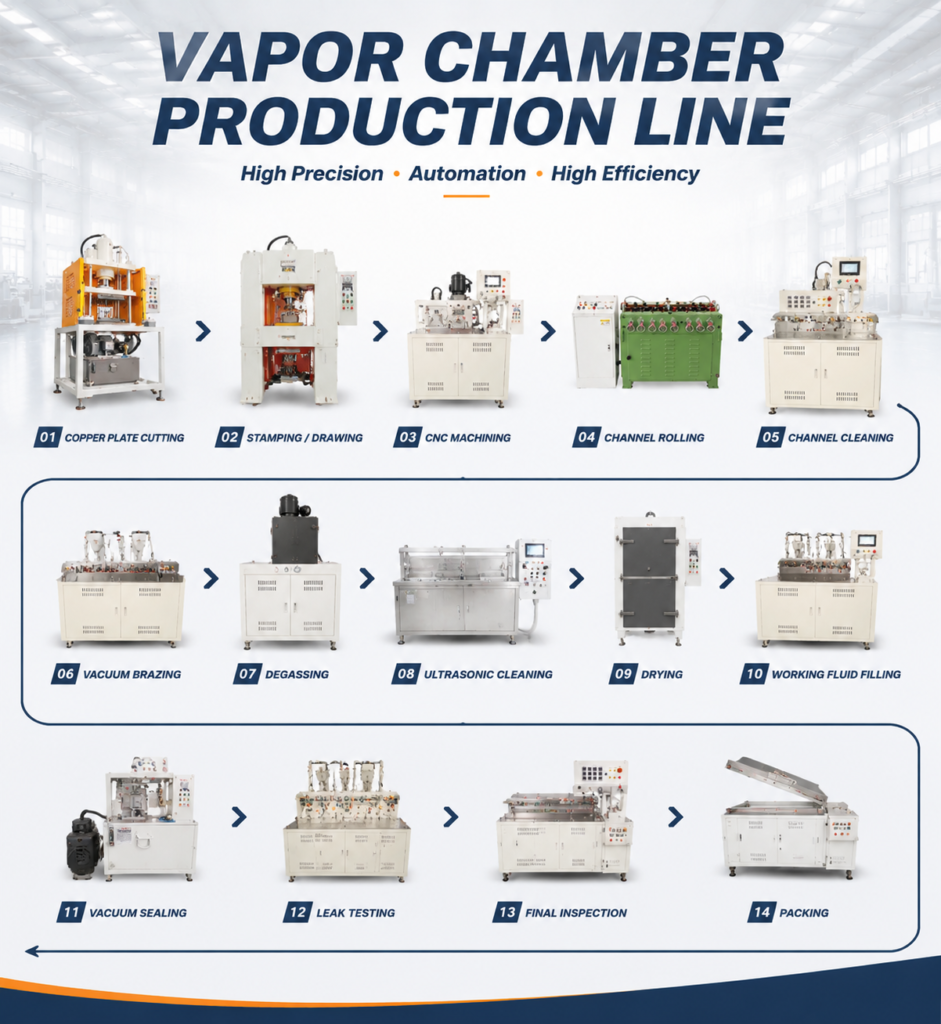

4. Vapor Chamber Manufacturing Process

The vapor chamber manufacturing process requires precise control over materials, internal structures, sealing, and fluid management. Although production methods vary, manufacturers commonly follow these stages.

4.1 Material Preparation

First, manufacturers prepare metal sheets or covers to meet design dimensions. They inspect thickness, flatness, and surface quality.

Accurate preparation helps prevent assembly problems later. In addition, clean surfaces support reliable joining and sealing.

4.2 Cover Forming and Machining

Next, manufacturers form or machine the covers and internal features. These features may include cavities, supports, channels, and sealing areas.

Dimensional accuracy matters because excessive deformation can affect internal clearance. It can also reduce final flatness and create assembly difficulties.

4.3 Wick Preparation

Manufacturers then prepare the wick structure. Depending on the design, they may use copper powder, mesh, or grooves.

For sintered structures, they control powder distribution and processing conditions. The goal is to achieve suitable porosity, structural integrity, and capillary performance.

4.4 Cleaning and Assembly

After wick preparation, manufacturers clean the internal surfaces. They then assemble the covers, wick, and supporting structures.

Contamination can affect fluid behavior and product reliability. Therefore, manufacturers need repeatable cleaning, handling, and storage procedures.

4.5 Welding and Sealing

Next, manufacturers join the covers using a suitable sealing method. Depending on the design, they may use laser welding or another controlled process.

The joints must maintain structural integrity and prevent fluid leakage. Meanwhile, excessive heat can deform the covers or damage internal features.

4.6 Vacuum Processing

Manufacturers evacuate the chamber through a designated process port. This step helps remove unwanted gases before fluid charging.

Non-condensable gases can interfere with vapor movement and condensation. Therefore, manufacturers should establish suitable vacuum parameters through engineering validation.

Related internal links: 【Vapor Chamber Vacuum Process】 and 【Vacuum Degassing Machine】.

4.7 Working Fluid Filling

Next, manufacturers introduce a controlled quantity of working fluid. The correct charge depends on chamber volume, wick characteristics, and operating conditions.

Too much or too little fluid can reduce thermal performance. Consequently, accurate dosing and repeatable process control remain essential.

4.8 Final Sealing and Inspection

Finally, manufacturers seal the filling port and inspect the finished component. They check dimensions, appearance, sealing integrity, and other specified quality criteria.

They may also conduct thermal performance tests before approving the product for shipment.

For more information, explore 【Vapor Chamber Manufacturing Process】.

5. Types of Vapor Chambers

Different vapor chamber designs address different thermal and mechanical requirements.

Flat Vapor Chambers

Flat vapor chambers spread heat across a broad surface. Therefore, manufacturers commonly use them in laptops, graphics cards, and compact electronic systems.

Ultra-Thin Vapor Chambers

Ultra-thin designs suit products with strict space limitations. However, reduced thickness can restrict vapor space and wick volume. Engineers must balance compact dimensions against thermal performance.

Sintered-Wick Vapor Chambers

These designs use porous sintered materials to return liquid to the heated area. Manufacturers can adjust powder properties and processing conditions to meet specific design requirements.

Custom-Shaped Vapor Chambers

Some applications require special outlines, mounting features, or thickness variations. Custom designs can meet these needs, although complex geometry may increase production and validation requirements.

Ultimately, engineers should select a design according to measured performance rather than thickness alone.

6. Vapor Chamber vs. Heat Pipe

A vapor chamber and a heat pipe both use phase-change heat transfer. However, each technology serves a different primary purpose.

Feature	Vapor Chamber	Heat Pipe
Main function	Spreads heat across a surface	Transfers heat between locations
Typical shape	Flat and plate-like	Tubular or flattened
Heat distribution	Primarily two-dimensional	Primarily along the pipe
Common application	CPUs, GPUs, compact electronics	Heatsinks and thermal assemblies
Installation	Often sits directly over a heat source	Connects a source to a separate cooling area

For example, a processor may generate concentrated heat within a small footprint. A vapor chamber spreads that heat across a larger contact area.

By comparison, a heat pipe can transport heat from a source to a remote heatsink. Therefore, some cooling systems combine both technologies.

The best choice depends on the heat path, available space, and required temperature uniformity.

Related internal link: 【Heat Pipe Production Line】.

7. Vapor Chamber vs. Copper Heat Spreader

A copper plate transfers heat through solid-state conduction. In contrast, a vapor chamber combines conduction with phase-change heat transfer.

Comparison Factor	Vapor Chamber	Solid Copper Plate
Heat-transfer mechanism	Conduction and phase change	Solid-state conduction
Heat spreading	Often effective across a broad surface	Depends on geometry and material conductivity
Internal structure	Sealed cavity and wick	Solid metal
Manufacturing complexity	Higher	Generally lower
Cost	Usually higher	Often lower
Best application	Concentrated heat and demanding thermal designs	Simpler thermal spreading requirements

A copper plate may provide sufficient performance for moderate heat loads. However, a vapor chamber may offer better heat spreading when localized hot spots create thermal bottlenecks.

Nevertheless, engineers should compare complete thermal assemblies under realistic conditions. A vapor chamber does not guarantee better results in every application.

8. Key Benefits of a Vapor Chamber

A vapor chamber offers several advantages for modern thermal management.

Improved Heat Spreading

First, phase-change heat transfer distributes energy beyond the source footprint. Consequently, downstream cooling hardware can use a larger effective surface area.

Better Temperature Uniformity

Moreover, a vapor chamber can reduce temperature differences across a properly designed plate. This feature helps address localized overheating in compact electronic assemblies.

Compact Integration

Its flat geometry supports slim device designs. Therefore, engineers can integrate it into systems with limited vertical clearance.

Flexible Thermal Design

Manufacturers can customize dimensions, thicknesses, wick structures, and mounting interfaces. As a result, engineers can adapt the chamber to different product requirements.

Compatibility with Cooling Systems

A vapor chamber can work with heatsinks, fans, and other heat-rejection arrangements. However, the surrounding system must still remove the transferred heat effectively.

Overall, vapor chambers provide useful design flexibility. Nevertheless, engineers should evaluate system performance, reliability, manufacturing complexity, and cost together.

9. Applications of Vapor Chambers

Vapor chambers support thermal management across several industries. Their importance continues to grow as electronic products become smaller and more powerful.

Consumer Electronics

Smartphones, tablets, and laptops often contain tightly packed components. Therefore, a vapor chamber can spread heat across limited internal space.

CPUs and GPUs

High-performance processors generate concentrated thermal loads. A vapor chamber distributes this heat toward a larger cooling interface.

Servers and Data Centers

Servers require reliable thermal management during sustained workloads. Vapor chambers can help manage localized hot spots within suitable cooling assemblies.

Telecommunications Equipment

Network hardware combines high component density with restricted enclosure dimensions. Consequently, effective heat spreading helps engineers design compact equipment.

Power Electronics

Inverters, converters, and control modules may generate significant heat. Vapor chambers can support temperature management when engineers design suitable thermal interfaces.

Industrial Electronics

Industrial controllers and specialized instruments also face thermal constraints. Custom vapor chambers may help address unusual mounting or packaging requirements.

In every application, engineers should verify heat loads, operating temperatures, mechanical constraints, and cooling-system compatibility.

10. Factors Affecting Vapor Chamber Performance

Several factors determine how effectively a vapor chamber transfers heat.

Heat load: The chamber must accommodate the required thermal input. Excessive heat can create transport limits or local dry-out.
Wick structure: Pore size, permeability, and capillary pressure affect liquid return. Engineers must balance fluid movement with structural requirements.
Working-fluid charge: Fluid quantity influences evaporation and liquid replenishment. Manufacturers should validate the charge for each design.
Vacuum quality: Non-condensable gases can interfere with vapor movement and condensation. Reliable evacuation and sealing help control this risk.
Contact resistance: Poor contact between the source and chamber limits performance. Suitable interface materials and mounting pressure help reduce this issue.
Condenser conditions: The chamber must release heat to a cooler surface. If the condenser cannot reject heat, the system cannot maintain the intended temperature difference.
Operating environment: Temperature cycling, vibration, and mechanical loading can affect reliability. Engineers should evaluate these conditions during design validation.

Therefore, engineers should assess the complete thermal system rather than the chamber alone.

11. Common Manufacturing Challenges

Manufacturers must control several potential problems during vapor chamber production.

Leakage

Poor joints or damaged sealing surfaces can compromise the internal environment. Accordingly, manufacturers need suitable joining procedures and leak inspections.

Inconsistent Wick Quality

Uneven powder distribution or unsuitable porosity can impair capillary return. Consistent materials and controlled sintering help improve repeatability.

Incorrect Fluid Charge

An unsuitable fluid quantity can reduce thermal performance. Therefore, manufacturers should calibrate filling equipment and verify process parameters.

Internal Contamination

Residues can interfere with fluid behavior. Proper cleaning, handling, and storage help reduce contamination risks.

Deformation

Welding, forming, and handling can affect flatness. Manufacturers should inspect critical dimensions throughout production.

Variable Thermal Performance

Manufacturing variation can produce inconsistent results between units. Standardized testing and traceable process records help identify the causes.

By controlling these challenges, manufacturers can improve product consistency and production yield.

12. Vapor Chamber Testing and Quality Control

Testing confirms whether a vapor chamber meets its design requirements. However, no single test covers every quality characteristic.

Manufacturers can establish a testing plan that includes:

Dimensional inspection: Verify thickness, flatness, and key dimensions.
Visual inspection: Check surfaces, joints, and visible defects.
Leak testing: Evaluate sealing integrity with a suitable method.
Process verification: Review relevant vacuum and fluid-filling records.
Thermal performance testing: Measure temperature response under defined conditions.
Reliability testing: Assess performance under application-specific thermal cycling or mechanical stress.

Thermal tests require repeatable conditions. These include heat input, mounting pressure, interface materials, ambient temperature, and sensor placement.

Furthermore, manufacturers should document test procedures and acceptance criteria. This practice helps engineering teams compare results across production batches.

Related internal links: 【Vapor Chamber Testing Machine】 and 【Multi-station Thermal Performance Tester】.

13. Vapor Chamber Manufacturing Equipment

A reliable production process depends on equipment that matches the product design and manufacturing volume.

Equipment	Manufacturing Purpose
Powder filling machine	Controls powder loading for suitable wick designs
Vacuum sintering furnace	Forms porous sintered wick structures
Laser sealing machine	Joins or seals suitable chamber components
Vacuum processing equipment	Removes unwanted gases before fluid charging
Fluid filling equipment	Delivers a controlled working-fluid quantity
Thermal performance tester	Evaluates heat-transfer behavior under defined conditions

Manufacturers may also require cleaning stations, precision fixtures, inspection tools, and leak-testing equipment.

For example, automated handling may improve repeatability in higher-volume production. However, automation choices should reflect product complexity, takt time, inspection requirements, and budget.

Companies planning a new production line should evaluate the complete process. This includes material preparation, assembly, sealing, vacuum treatment, fluid charging, and final testing.

Explore these related resources:

14. How to Choose a Vapor Chamber

Selecting a vapor chamber requires coordination between thermal engineers and manufacturing teams.

First, define the heat load and target operating temperatures. Next, identify the available installation area and maximum thickness.

Then, assess the required heat-spreading area and condenser interface. Engineers should also consider orientation, airflow, mounting pressure, and nearby components.

Afterward, evaluate wick design, fluid compatibility, sealing methods, and operating conditions. These factors influence thermal performance and manufacturing feasibility.

Manufacturers should also consider quality requirements and testing capabilities. For example, high-volume applications may benefit from automated filling, sealing, and inspection.

Finally, validate the design under representative operating conditions. Compare thermal performance, reliability, production yield, and total cost before making a final decision.

A suitable equipment supplier should explain its manufacturing capabilities clearly. It should also discuss process controls, testing methods, customization options, and production constraints.

15. Why Choose thermalmachinery?

thermalmachinery provides an online starting point for businesses exploring thermal manufacturing machinery and production solutions. Visit the official website at https://thermalmachinery.com/ to explore relevant equipment information.

For vapor chamber manufacturers, machinery selection should match the product design and required production capacity. Important considerations include process compatibility, automation, repeatability, and testing requirements.

When evaluating production equipment, buyers should review the complete manufacturing workflow. This includes wick preparation, sintering, assembly, sealing, vacuum processing, fluid filling, and final inspection.

Thermalmachinery is relevant to this equipment research because vapor chamber production requires coordinated thermal manufacturing processes. Engineers and purchasing teams can use the website as a starting point when investigating equipment options.

Before selecting machinery, clarify these technical requirements:

Product dimensions and design variations.
Required production capacity and automation level.
Wick preparation and sintering requirements.
Sealing, vacuum processing, and fluid filling methods.
Thermal performance and leak-testing criteria.
Installation, commissioning, and operator training needs.

These discussions help align machinery selection with real production objectives. For more information, visit thermalmachinery.com.

16. Frequently Asked Questions

1. What is a vapor chamber used for?

A vapor chamber spreads heat across a broad surface. Common applications include CPUs, GPUs, laptops, servers, telecommunications equipment, and power electronics.

2. How does a vapor chamber transfer heat?

It absorbs heat through evaporation and releases heat through condensation. A wick then returns liquid to the heated region through capillary action.

3. Is a vapor chamber better than a heat pipe?

Not always. A vapor chamber usually spreads heat across a surface, while a heat pipe transports heat between locations. Engineers should choose according to the thermal design.

4. What materials does a vapor chamber use?

Copper commonly forms the enclosure and wick. Water often serves as the working fluid in copper designs, although material and fluid choices depend on operating conditions.

5. Why does a vapor chamber require vacuum processing?

Vacuum processing removes unwanted gases and prepares the chamber for fluid charging. Non-condensable gases can interfere with vapor movement and condensation.

6. What affects vapor chamber performance?

Heat load, wick properties, fluid charge, vacuum quality, contact resistance, and condenser conditions all influence performance.

7. How do manufacturers test a vapor chamber?

Manufacturers may inspect dimensions, check sealing integrity, and measure thermal performance. The exact test plan depends on design requirements and application risks.

8. What equipment does vapor chamber production require?

Typical equipment includes powder filling systems, vacuum sintering furnaces, sealing machines, vacuum processing systems, fluid filling equipment, and thermal testers.

9. Can manufacturers customize a vapor chamber?

Yes. Manufacturers can adapt dimensions, thicknesses, outlines, wick structures, and mounting features. However, each design requires suitable engineering validation.

10. Where can I find vapor chamber manufacturing equipment?

Visit thermalmachinery.com to explore thermal manufacturing machinery and related production solutions. Confirm specific machine capabilities with the supplier before purchasing.

17. Conclusion

A vapor chamber provides an effective way to spread heat in compact, high-performance electronic systems. Its phase-change mechanism distributes thermal energy beyond concentrated heat sources.

However, reliable performance requires more than a suitable chamber design. Manufacturers must control wick quality, fluid charge, vacuum processing, sealing, and thermal testing.

Meanwhile, engineers should evaluate the complete cooling assembly before choosing a solution. Heat load, contact resistance, condenser conditions, and installation constraints all influence final performance.

For manufacturers developing vapor chamber products, appropriate machinery supports process consistency and production quality. Powder preparation, sintering, sealing, vacuum processing, fluid filling, and thermal testing all deserve careful consideration.

thermalmachinery is a useful starting point for exploring thermal manufacturing machinery and production solutions. Visit https://thermalmachinery.com/ to learn more about equipment for thermal management manufacturing.
